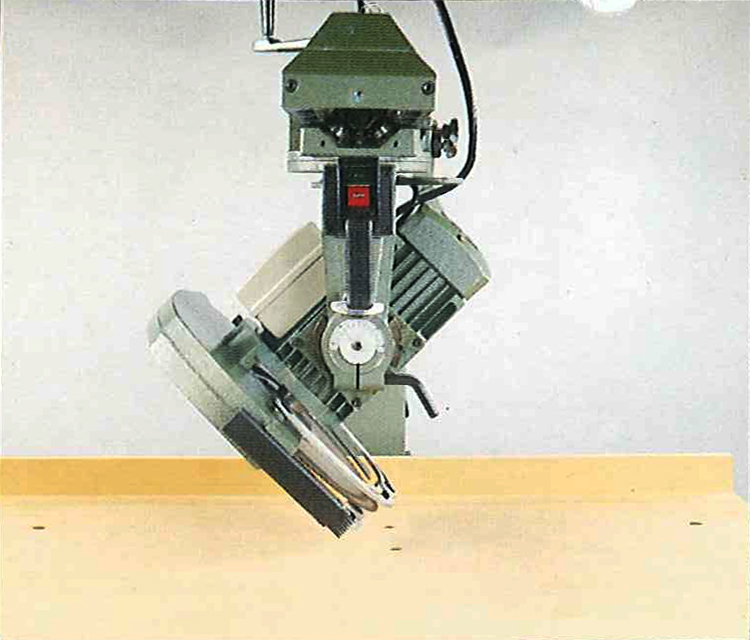

RS-420
RADIAL ARM SAW
|
|
|
|
Model |
RS-420 |
|
Motor |
( 3kw ) 4HP/3Ph |
|
Motor speed |
2875 RPM(50Hz), 3450 RPM(60Hz) |
|
Bearings for rails |
8 pcs |
|
Spindle diameter |
30mm ( 1" ) |
|
Blade diameter |
( 355mm or 315mm )14" or 12' |
|
Head swiveling |
0 to 180 degree |
|
Head tilting |
0 to 90 degree |
|
Max trimming width |
34" / 860mm |
|
Max cross cutting length |
27" / 680mm |
|
90 degree cross cut capacity |
|
|
at H=20mm |
25" / 640mm |
|
at H=110mm |
22" / 550mm |
|
45 degree cross cut capacity |
|
|
at H=20mm |
18" / 453mm |
|
at H=110mm |
15" / 389mm |
|
Table area |
44" x 34" ( 1,120 x 860mm ) |
|
Overall measurement |
46" x 44" x 56" ( 116 x 112x 142cm ) |
|
Packing dimension |
46" x 36" x 17" ( 117 x 91 x 43cm ) |
|
Net weight |
434 lbs ( 197 kgs ) |
|
Gross weight |
544 lbs ( 247 kgs ) |
|
|
|
|
;)
;)
;)
