UH SERIES

This special series have been designed for vacuum dust from any sanding work! We can also provide you control boxes to have

an automatic start/stop function connected with each of your sanders.

UH series is suitable for sanding on metal and wood industry!!!

• OPTIONAL :

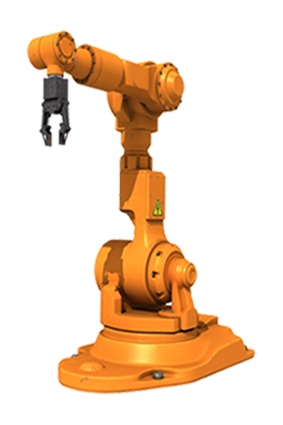

Robot Arm

►APPLICATION:

MODEL	UH-150
Inlet size	125mm
Motor	10HP
Air volume	10CMM
Static pressure	27.5kPa
Filter cleaning	By compressed air
Filter material	5 micron,L-PET, electric conductive
Filter material (optional)	0.5 micron, L-PET, electric conductive
Number of bag filters	20
Bag size each	128x1000 (mm)
Filter material (optional)	catridge filter
catridge filters	optional (10 or 0.5 micron x6)
Residual dust content	0.2 mg< M3
Dust tank inner dimension	75 x 54x 57 cm
Dust tank volume	0.23 cbm
Air pressure required	6-8 kgs/cm2
Sound rate	80 dB
Net weight / Gross Weight	280kgs / 360kgs
Packing dimensions	174 x 108 x 232 cm
