LS-1000E / LS-1000EC

ANTI-EXPLOSION DUST COLLECTOR

LS dust collector is designed for use in industrial environments for extracting

different kinds of dust and dry shavings from single or multiple dust sources.

It can be installed directly at the workplace without any additional fire or explosion protection measures.

The blower, comprising a high efficiency centrifugal fan with backwardly curving blades, is situated on

the pure-air side. The fan is positioned inside the unit and therefore soundproofed to obtain a low

noise level. Its fine filter material ensures residual dust content in the air of less than 0.2 mg/m³.

ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS

Featuring in built-in Fire Control system to minimize damage caused by the dust expolstion hazard.

FEATURES

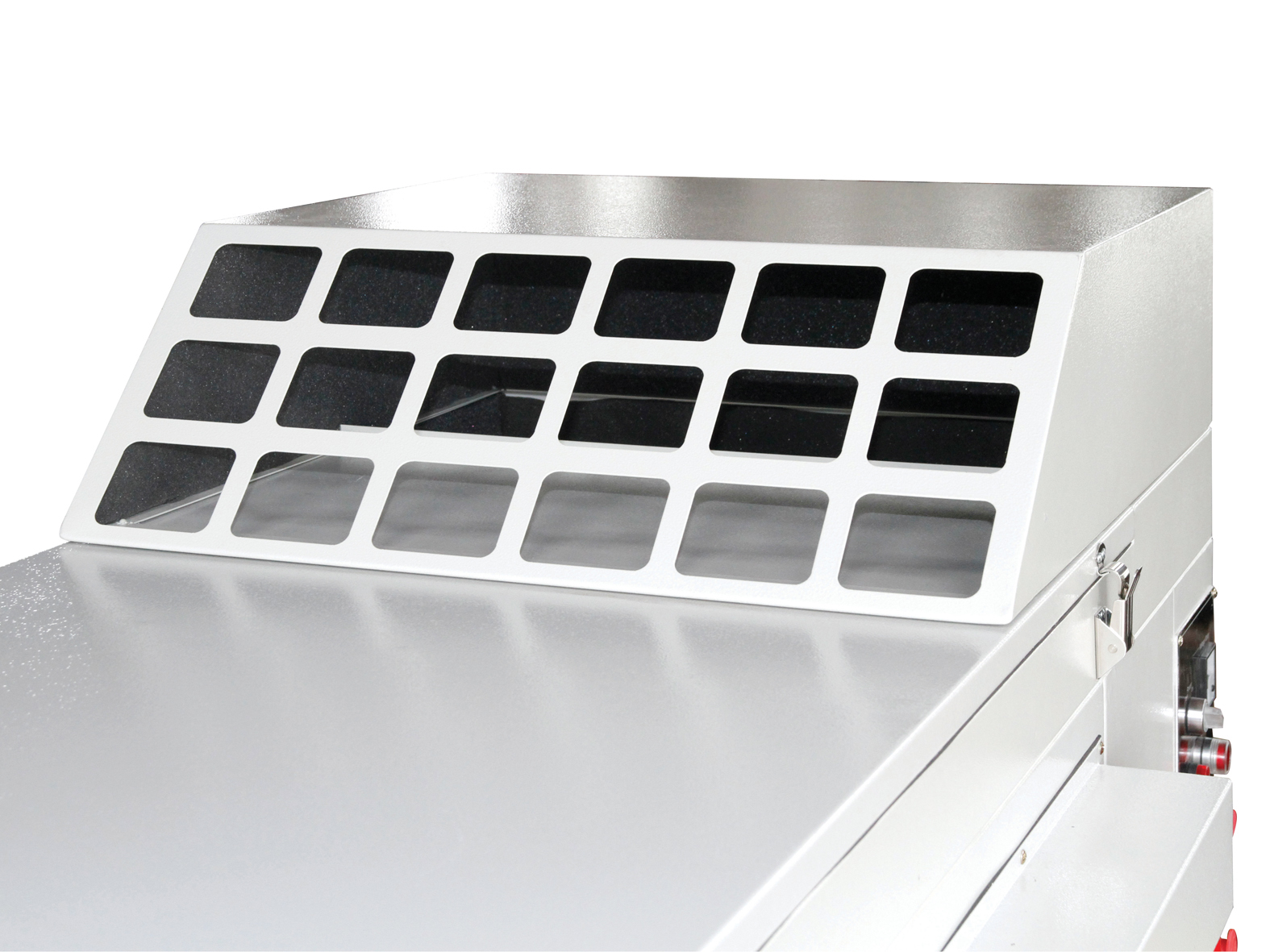

Optional : Noise elimination cover

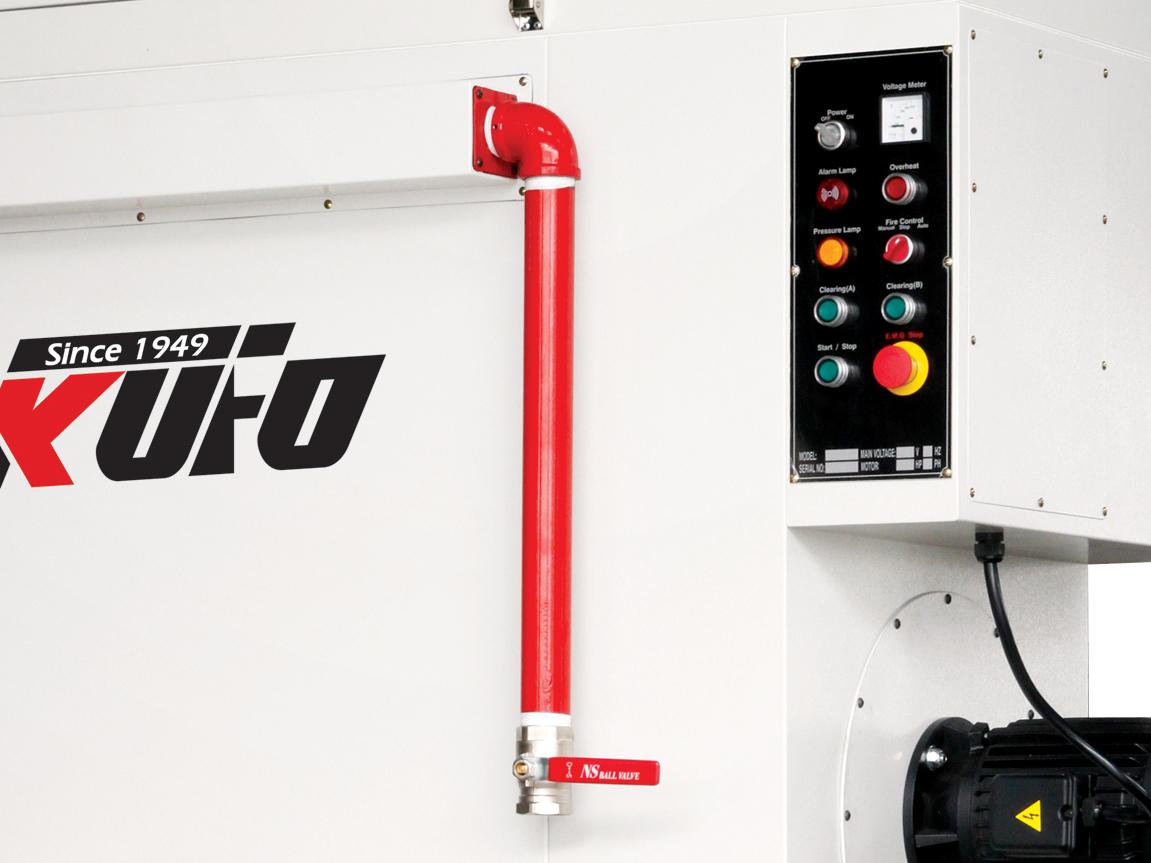

Standard : Fire sprinkler

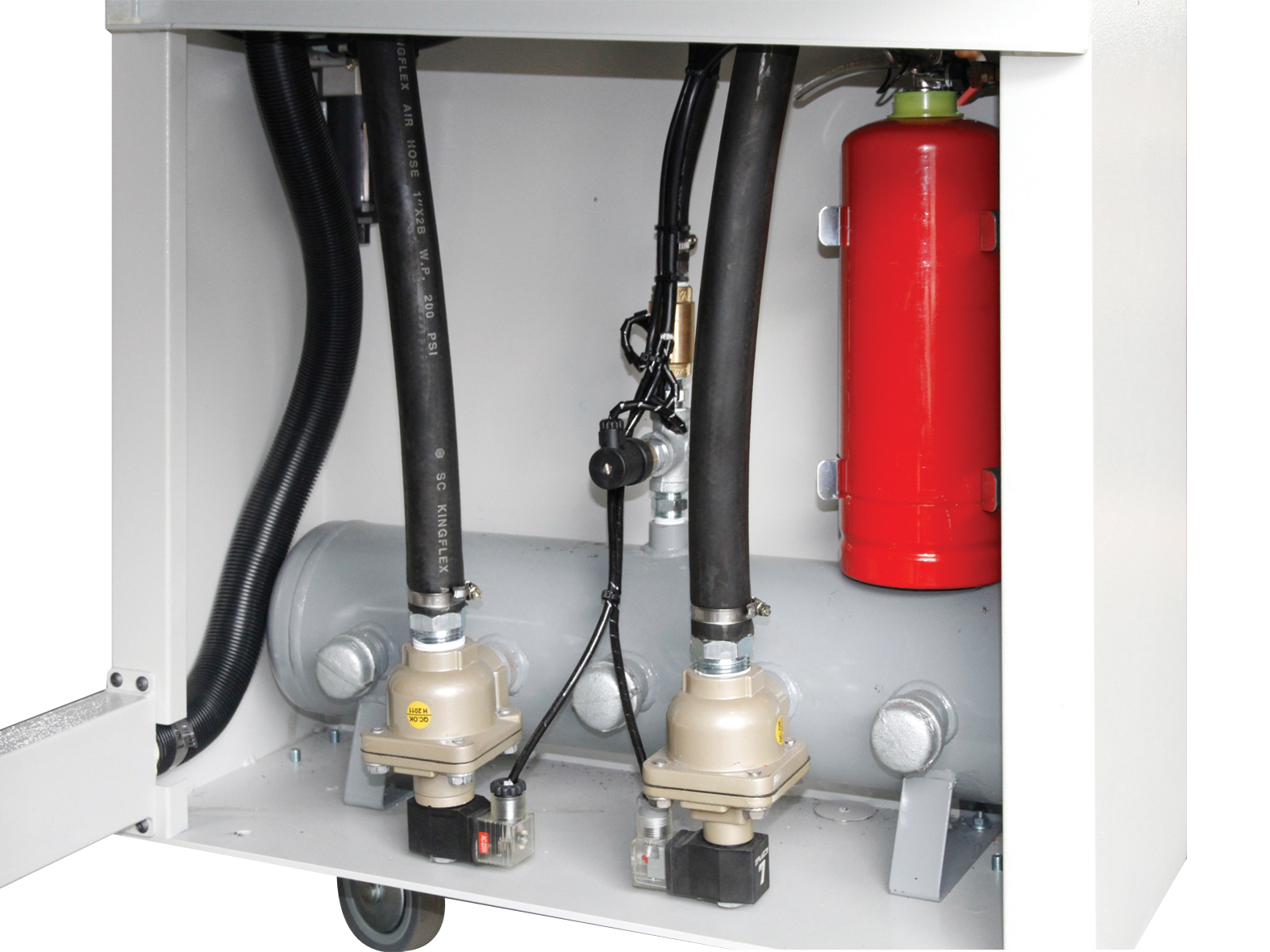

Optional : Fire Extinguiser

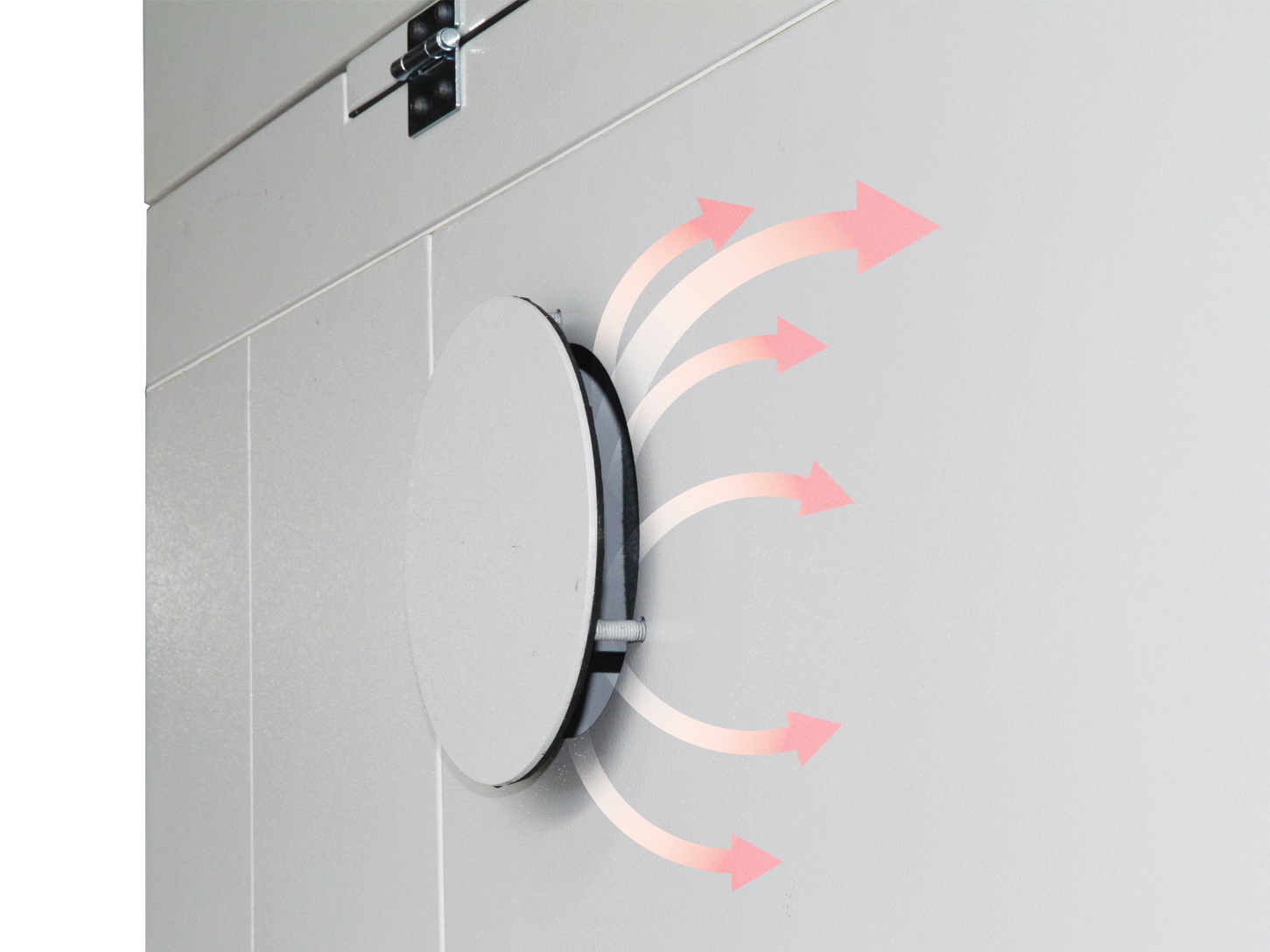

Standard : Pressure releaser device

APPLICATIONS:

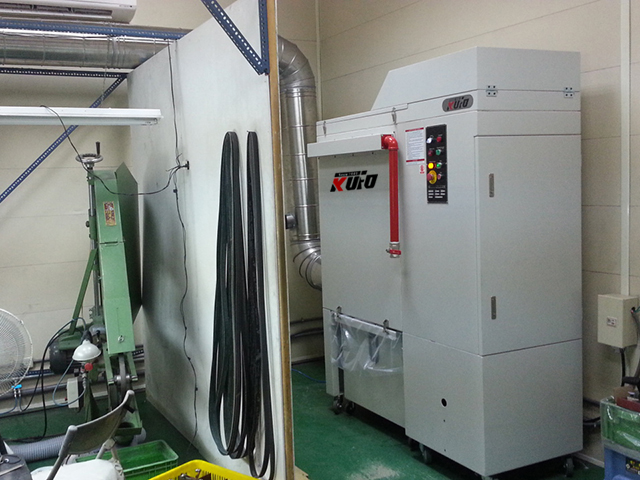

LS-500E IS USED IN METAL SHEET PROCESSING FACTORY

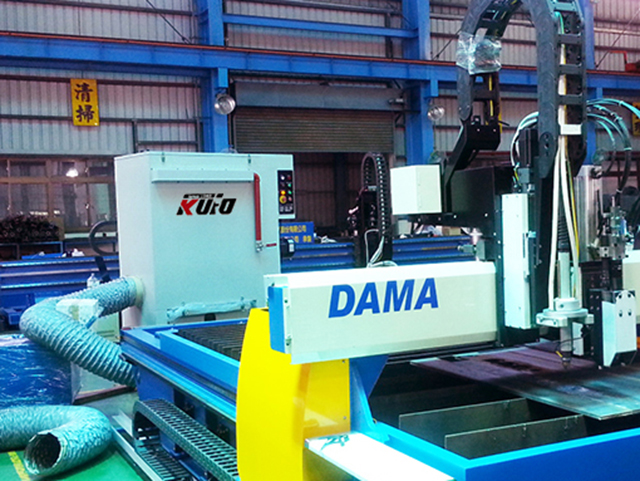

LS-500E IS USED WITH THE METAL CUTTING MACHINE.

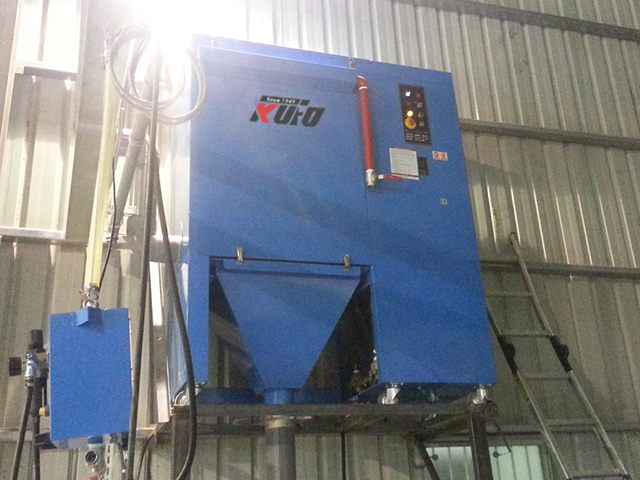

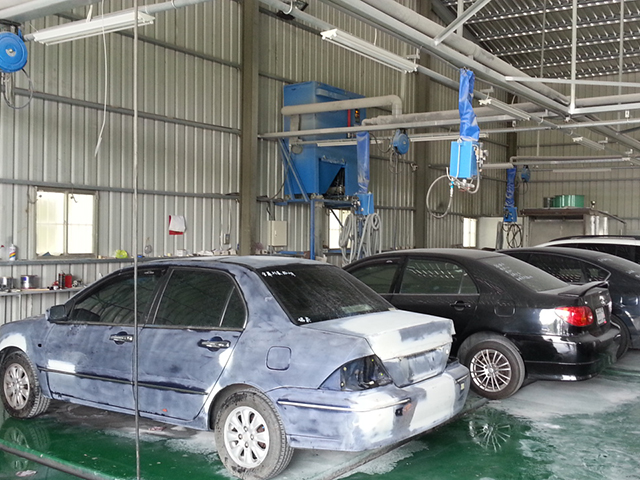

LS-500E IS USED IN THE CAR RECOATING

LS-500A IN THE METAL SHEET PROCESSING FACTORY

LS-1000E IS USED WITH COLUMN MACHINING CENTER

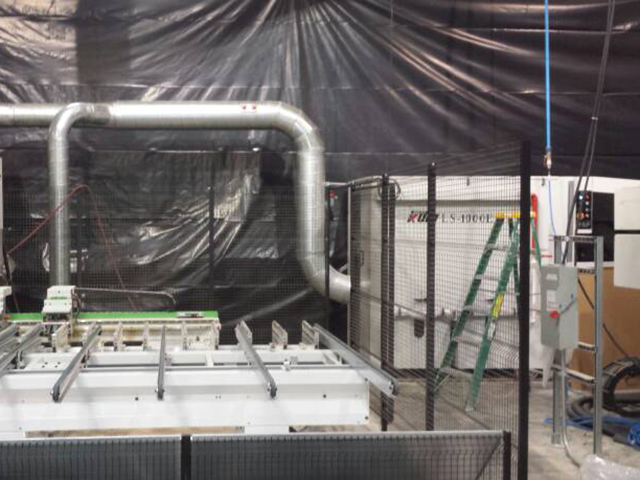

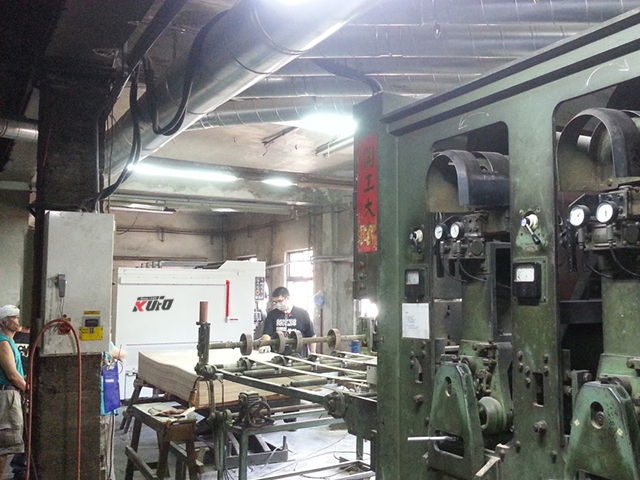

LS-1000E IS USED WITH WOODWORKING WIDE BELT SANDER

LS-1000E IN A PLASTIC POWDER FACTORY

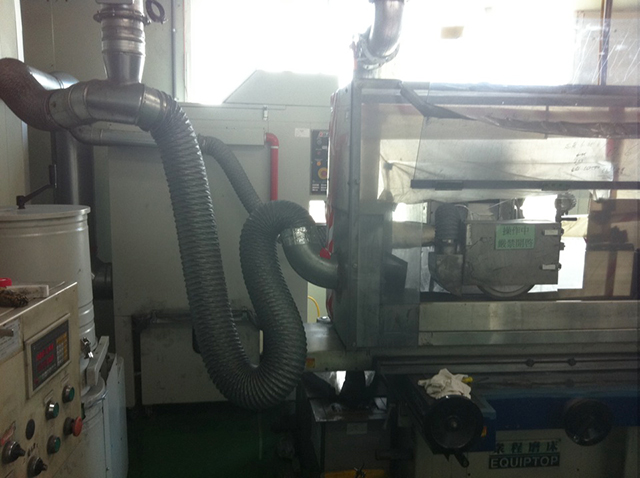

LS-500E IS USED WITH A MACHINING CENTER

MODEL	LS-1000E	LS-1000EC
Inlet size	300mm	300mm
Motor	10HP(7.5kw)	10HP(7.5kw)
Air volume	138CMM / 5810CFM	138CMM / 5880 CFM
Static pressure	2500 Pa	2700 Pa
Filter cleaning	by compressed air	by compressed air
Filter type	bag	cartridge
Filter material	5 micron,L-PET, electric conductive	Polyester, 10 micron
Number of filters	48	15
Filter area / Filter size	19.2 m2 / 0.4 m2/ pc	72 m2 / 4.8m2/pc
Residual dust content	0.2 mg< M3	0.2 mg< M3
Dust tank inner dimension	87 x 65 x 56 cm X 2pc	87 x 65 x 56 cm X 2pc
Dust tank volume	0.32 cbm	0.32 cbm
Air pressure required	6-8 kgs/cm2	6-8 kgs/cm2
Sound rate	83 dB @ 1 M	83 dB @ 1 M
Sound rate with noise reducing cover, optional	MAX. 78 dB @ 1 M	MAX. 78 dB @ 1 M
Net / Gross weight	600 / 740 kgs	600 / 740 kgs
Packing dimensions	261 x 125 x 226 cm	261 x 125 x 226 cm
