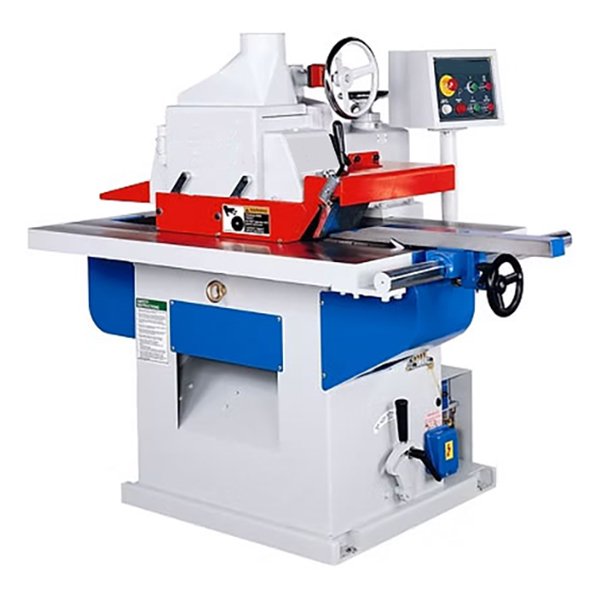

Rip Saw
FEATURES
● Base is ruggedly fabricated to provide a solid foundation and vibration free cutting..
● End table swings downward and prevents short workpieces and thin edgings from sliding.
● Triple anti-kickback fingers provide maximum operator safety.
● The sawblade is easily accessed for replacement.
● Control panel located within easy reach position for operation convenience.
● The oil lubricator provides the correct amount of oil to lubricate the track slideways.
● This machine produces accurate edge for high accuracy glue joint.
● 400mm capacity from blade to arm.
● Powerful 10HP (15HP) motor drive.
 |
Precision saw arbor assembly● The saw arbor assembly is precision and ruggedly constructed to ensure precision cutting and no vibration. ● Pressure roller and saw arbor assembly are conveniently raised and lowered by separate hand wheel. |
 |
Precision fence● The fence is accurately made and operated moved smoothly.● It is locked accurately. |
 |
Variable Feed Speed Device (Option)● The device provides wide range of chain feed speed. ● This permits the machine to cut all types of wood material, softwood or hardwood. |
 |
An elevator feeding rollers clamp thickness of numerals |
 |
Rail & Chains● Block surface is corrugated machined and hardened to resist wear. ● Ensure stable feeding and high cutting precision. |
 |
Triple Anti-Kickback Fingers● Triple anti-kickback fingers provide maximum operator safety. |
 |
Complete safety protection● Double top. ● 2 rollers clamp, 3 rollers. (option) |
 |
Oil lubricator● The automatic lubricator provides the correct amount of oil to lubricate the track sideways, ensuring smoothness of chain motions at all time. |
 |
Control Panel● All of machine motion controls are centralized on a control panel for operation convenience. An oil empty warning lamp is provided on the control panel. |
| SK-303S | |
|---|---|
| Maximum working thickness | 85 mm |
| Saw blade diameter | 200-300mm (160mm) |
| Distance from blade to arm | 400mm |
| Table size | 1253x 780mm |
| Feed speed (3 speeds) | 15/ 20/ 25 M/min |
| Saw arbor diameter | ø25.4mm |
| Saw arbor motor | 10HP/ 15HP |
| Feed motor | 1HP (2HP) |
| Saw arbor speed | 4100 rpm (60HZ) / 3800 rpm (50HZ) |
| Dust exhaust diameter | ø5" |
| Width of chain block | 140mm |
| Net weight | 900 kgs |
| Gross weight | 1050 kgs |
| Packing dimensions(LxWxH) | 1660x 1010x 1360mm |
* All specifications, dimensions and design characteristics are subject to change without notice.
